NOTICE:

The cut plier and scraper were removed from our newest batch, please confirm it before purchase.

Thanks for your understanding.

Product Description

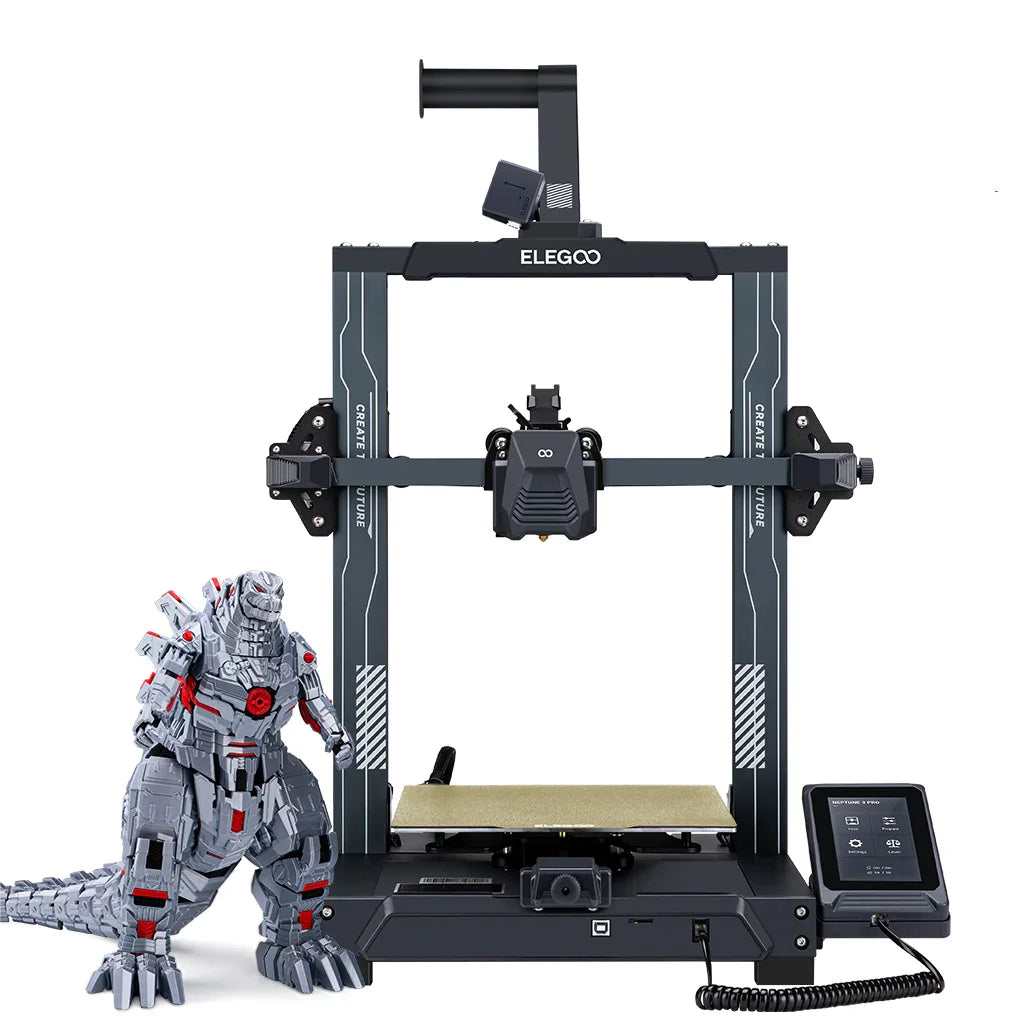

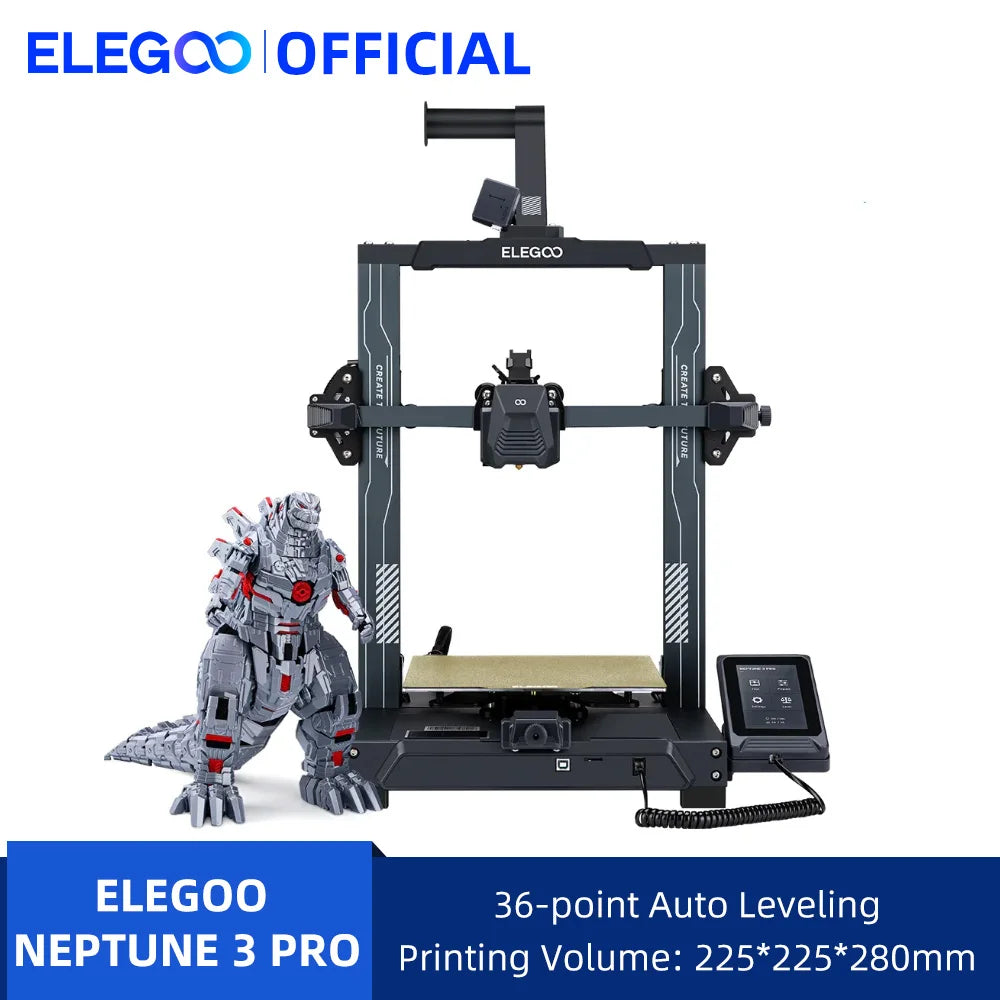

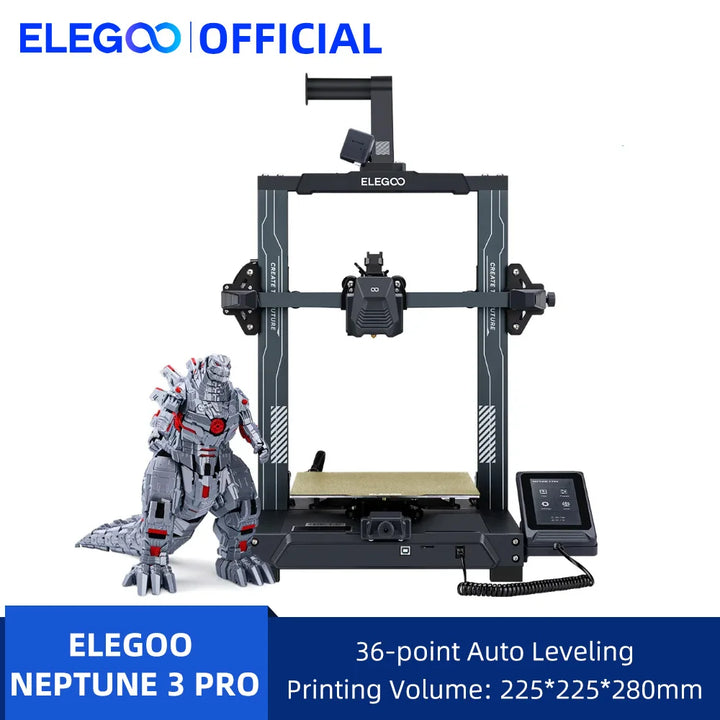

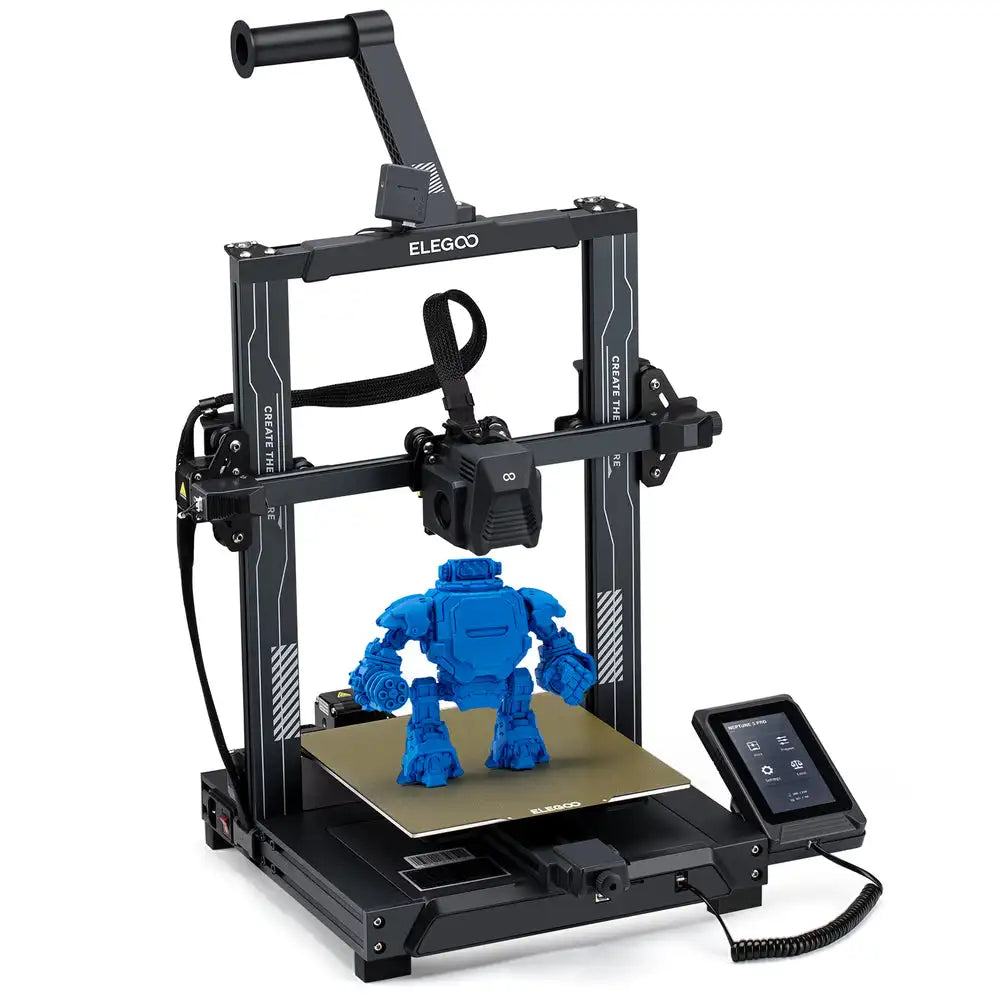

【Overview of Neptune 3 Pro】225*225*280mm printing size can meet the needs of most users. With an STM32 motherboard, all axes of ELEGOO Neptune 3 Pro are driven by silent stepper motors for quieter and more precise movement during printing, which reduces the noise as low as 47-48dB. The easy-to-setup printer comes with the main components pre-assembled, as well as a complete tool kit for quick installation.

【Dual-Gear Direct Extruder】The new dual-gear direct drive extruder is made of SUS303 high-quality stainless steel with a 3:1 reduction ratio and stronger extrusion force for smoother filament feeding and more stable & accurate printing, which greatly reduces nozzle clogging and under-extrusion issues, printing effect is better than Bowden extruder. Compatible with multiple filaments such as PLA, TPU, PETG, and ABS.

【Nozzle Kit for Better Printing Effect】The nozzle kit contains a TC4 titanium alloy throat pipe, an aluminum alloy flat heat sink structure, and a brass nozzle. The widened aluminum heat sink paired with the front close-fitting efficient cooling fan for a better heat dissipation effect and lower the temperature of the throat pipe, thereby reducing the possibility of nozzle clogging. Fans on both sides of the print head ensure omnidirectional and rapid cooling of printed layers to improve the model details and overhang printing effect.

【Smarter Printing Experience】Auto mesh bed leveling adopts a non-contact high precision sensor to automatically scan 36 (6x6) points of the hotbed and collect data in real-time, and then adjust the Z-axis height to compensate for any irregularities and unevenness of the printing platform. (Only applicable to metal printing platforms) Intelligent fan control: after printing, all fans will automatically stop working below 50℃ to extend fan lifespan, reduce noise, and save power. Smart resume printing: the printer will auto-pause when the filament runs out or breaks, and you can resume printing after a power outage.

【Ease of Use】PEI magnetic platform with a special coating and spring steel sheet for good adhesion and anti-warping, so that prints can be easily released or popped off by bending the print steel sheet. The 4.3-inch removable capacitive touch screen can be operated by hand-held or fixed on the base. Built-in print model preview function to preview the model image before printing and observe the printing progress. The 250W high-power hotbed can quickly heat up to 100ºC and start printing. The integrated LED light bar on the gantry can be operated by pressing the buttons on the screen to conveniently observe the model printing in a poor light environment.

Product Parameters

Product model: Neptune 3 Pro

Frame material: CNC machined aluminium extrusion

Modeling technology: FDM(Fused Deposition Modeling)

Rated voltage: 115/230V 50/60Hz

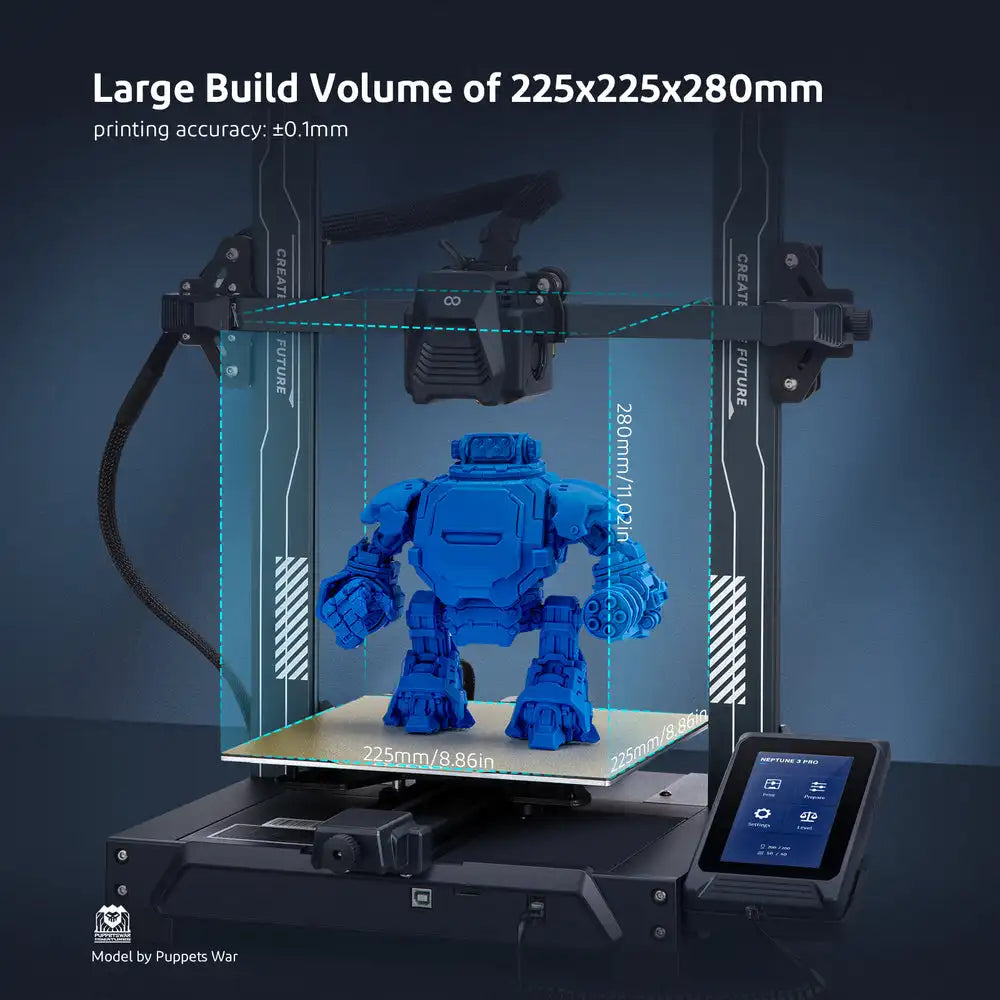

Forming size: 225X225X280(mm⊃3;)

Platform size: mm

Equipment dimensions:475*445*515mm

MAX. nozzle temperature: 260° Celsius

MAX. hotbed temperature: 100° Celsius

File transfer: TF Card offline printing, online printing

File format: .stl, .obj, .amf

Filament compatibility: PLA, ABS, TPU, PETG, Wood, Marble, etc

UI Lanague: English, French, German, Russian, Italian, Spanish, Japanese, Chinese

Resume printing: Yes

Filament detection: Yes

Net weight: 8.1KG

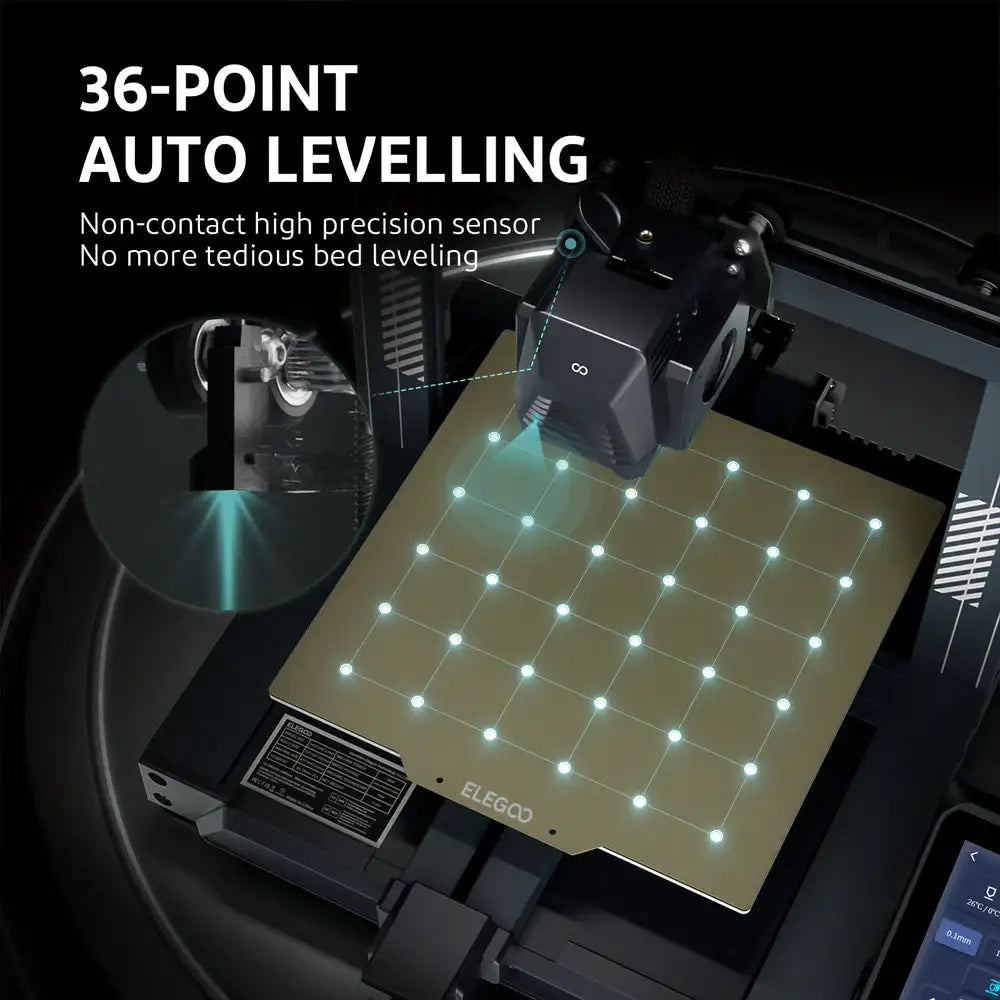

One-click Auto Leveling

The 36-point leveling system adopts a non-contact sensor to precisely measure the distance between the nozzle and hotbed in 36 areas across the print platform, and automatically calibrates and compensates for any inconsistencies or unevenness of the hotbed for better final print quality.

Powerful Extrusion System

Double-gear direct extruder with 3 times extrusion torque motor and enhanced gearing force, work with titanium alloy throat pipe for easier filament feeding and more stable & precise printing. And the 250W hotbed can quickly heat up to 100ºC, compatible with PLA,ABS,PETG,TPU, and similar filaments.

Quiet & Safe Printing

The whole machine adopts STM 32-bit motherboard silent drivers and a more reasonable nozzle heat dissipation structure, reducing the noise down to 50db, like a person's whisper. Wear resistance POM V-slot wheels move quietly, smoothly, and accurately.

Enhanced Reliability

Z-axis dual lead screw + Z-axis dual-motor design with better synchronization increases the accuracy and stability of printing.

Smart Resume Printing

No worry about unexpected power failure during the printing process since the printer can resume printing after the power supply is restored. With a filament detection sensor, whenever the filament runs out or breaks, the printer will pause and alarm until you load the new filament.

More Practical Features

Model Display

Model Comparison
